AlZn4Mg3Cu / 7079 / 3.4365 Aluminum Bar

Aluminum rod is a type of aluminum product, and the melting and casting process of aluminum rod includes melting, purification, impurity removal, degassing, slag removal, and casting. Has good ductility, conductivity, thermal conductivity, heat resistance, and nuclear radiation resistance

WhatsApp ：+86-17662067996

Email ：man17662067996@gmail.com

- PRODUCT PARAMETERS -

Item	Aluminum Flat / Angle / Bar
Standard	GB/T3190-2008 JIS H4040:2006 JIS H4001:2006 ASTM B221M:2006 ASTM B209M:2006 IOS 209:2007(E) EN 573-3:2003 etc...
Size	Thickness:0.1~200mm or as required
	Width:0.1-20mm or as required
	Size can be customized according to customer needs
Surface	Anodized,Mill finished,Polished,Power,etc
Application	Industrial,etc
Package	Standard export package ,or as required
Price term	EXW,FOB,CIF,CFR,ect...
Payment	T/T,L/C,Westerm Union,etc
Certificates	IOS/SGS/BV

- Chemical Composition -

Alloy	%Si	%Mg	%Mn	%Cu	%Fe	%Cr	%Zn	%Ti	%Others	%Al
EN AW-1050 A	0.25Max	0.05Max	0.05Max	0.05Max	0.40Max	–	0.07Max	0.05Max	–	99.5 Min
EN AW-1070 A	0.20Max	0.03Max	0.03Max	0.03Max	0.25Max	–	0.07Max	0.03Max	–	99.7 Min
EN AW-1100	Si+Fe 0.95 Max	–	0.05 Max	0.05 – 0.20	–	–	0.10 Max	0.05 Max	–	99.0 Min
EN AW-2011	0.40 Max	–	–	5.00 – 6.00	0.70 Max	–	0.30 Max	–	Bi : 0.20 – 0.60Pb : 0.20 – 0.60	Remainder
EN AW-2014	0.50 – 1.20	0.20 – 0.80	0.40 – 1.20	3.90 – 5.00	0.70 Max	0.10 Max	0.25 Max	0.15 Max	–	Remainder
EN AW-2024	0.50 Max	1.20 -1.80	0.30 – 0.90	3.80 – 4.90	0.50 Max	0.10 Max	0.25 Max	0.15 Max	0.15 Max	Remainder
EN AW-3003	0.60 Max	–	1.00 – 1.50	0.05 – 0.20	0.70 Max	–	0.10 Max	–	0.15 Max	Remainder
EN AW-3103	0.50 Max	0.30 Max	0.90 – 1.50	0.10 Max	0.70 Max	0.10 Max	0.20 Max	0.10 Max	–	Remainder
EN AW-6101A	0.30 – 0.7	0.40 – 0.90	0.03 Max	0.05 Max	0.40 Max	–	–	–	0.10 Max	Remainder
EN AW-6005	0.60 – 0.90	0.40 – 0.60	0.10 Max	0.10 Max	0.35 Max	0.10 Max	0.10 Max	0.10 Max	–	Remainder
EN AW-6351	0.70 – 1.30	0.40 – 0.80	0.40 – 0.80	0.10 Max	0.50 Max	–	0.20 Max	0.20 Max	0.15 Max	Remainder
EN AW-6060	0.30 – 0.60	0.35 – 0.60	0.10 Max	0.10 Max	0.10 – 0.30	0.05 Max	0.15 Max	0.10 Max	–	Remainder
EN AW-6061	0.40 – 0.80	0.80 – 1.20	0.15 Max	0.15 – 0.40	0.70 Max	0.04 – 0.35	0.25 Max	0.15 Max	–	Remainder
EN AW-6063	0.20 – 0.60	0.45 – 0.90	0.10 Max	0.10 Max	0.35 Max	0.10 Max	0.10 Max	0.10 Max	–	Remainder
EN AW-6082	0.70 – 1.30	0.60 -1.20	0.40 – 1.00	0.10 Max	0.50 Max	0.25 Max	0.20 Max	0.10 Max	–	Remainder

- Mechanical Properties -

Alloy	Temper	UTS (Mpa)		Yield Strength (Mpa)		Elongation (%)
		Minimum	Maximum	Minimum	Maximum	A 50mm (Minimum)
EN AW-1050 A	F	60	–	20	–	23
EN AW-1050 A	O	60	95	20	–	23
EN AW-1070 A	F	60	–	20	–	23
EN AW-1100	O	75	110	–	–	25
EN AW-2011	T4	275	–	125	–	12
EN AW-2011	T6	310	–	230	–	6
EN AW-2014	O	–	250	–	135	10
	T4	370	–	230	–	11
	T6	415	–	370	–	5
EN AW-2024	O	–	250	–	150	10
	T3,T3510,T3511	395	–	290	–	6
	T8,T8510,T8511	455	–	380	–	4
EN AW-3003	F	95	–	35	–	20
EN AW-3003	O	95	135	35	–	20
EN AW-3103	F	95	–	35	–	20
EN AW-3103	O	95	135	35	–	20
EN AW-6101A	T6	200	–	170	–	8
EN AW-6005	T4	180	–	90	–	13
EN AW-6005	T6	270	–	225	–	6
EN AW-6351	O	–	160	–	110	12
	T4	205	–	110	–	12
	T6	290	–	250	–	6
EN AW-6060	T4	120	–	60	14	12
	T5	160	–	120	–	6
	T6	190	–	150	–	6
	T64	180	–	120	–	10
	T66	215	–	160	–	6
EN AW-6061	O	–	150	–	110	14
	T4	180	–	110	–	13
	T6	260	–	240	–	6
EN AW-6063	O	–	130	–	–	16
	T4	130	–	65	–	12
	T5	175	–	130	–	6
	T6	215	–	170	–	6
	T66	245	–	200	–	6
EN AW-6082	O	–	160	–	110	12
	T4	205	–	110	–	12
	T5	270	–	230	–	6
	T6	290	–	250	–	6

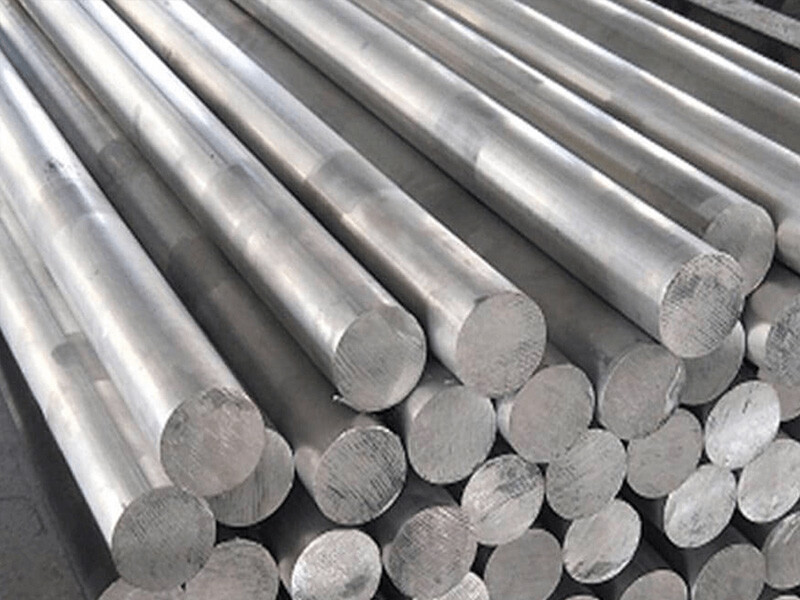

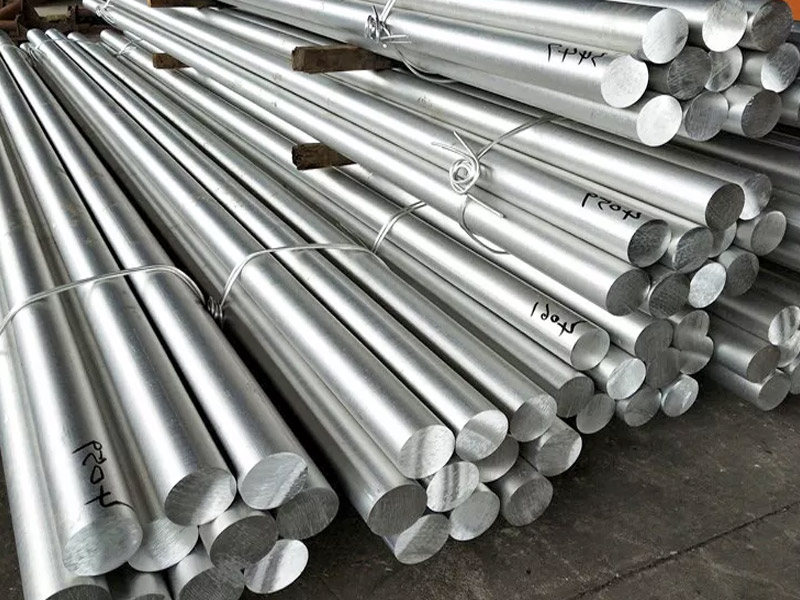

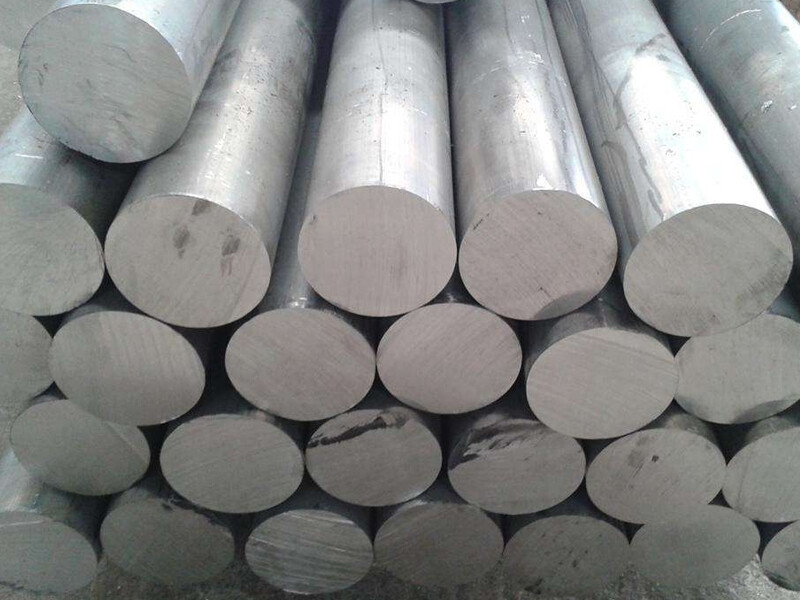

- PRODUCT DISPLAY -

- Product Packaging-

Adopting moisture-proof and scratch resistant industrial packaging solutions (including five options of waterproof paper wooden/steel pallets, wooden/steel box combinations, and no outer packaging steel belt bundling), we ensure zero damage during transportation through customized wooden frame reinforcement, anti rust coating, and cushioning layer. The outer packaging synchronously realizes product model/batch number identification, enterprise logo customization, and environmentally friendly recyclable design, balancing moisture-proof protection and transportation cost optimization.

- Company Introduction -

Liaocheng Xinghe Supply Chain Management Co., Ltd. was founded on March 3, 2017. The company has a registered capital of RMB 3 million, which has been fully paid up. It is a limited liability company invested and controlled by natural persons, registered with the Administration for Market Regulation of Liaocheng Economic and Technological Development Zone.

The enterprise falls under the wholesale industry, with the national standard industry category of metal and metal mineral wholesale, and employed 6 staff members with social insurance in 2024.

- FAQ -

Are you a trading company or a manufacturer?



We integrate production and trading. We have our own processing factory and long-term cooperative steel mills, capable of production, deep processing and import & export sales.

Do you have large amount of steel products in stock?



Yes. We keep abundant regular stock of carbon steel, stainless steel, galvanized steel, aluminum and copper materials to support quick order delivery.

How long is the delivery time?



For in-stock items, we arrange shipment within 3–7 working days. For customized processed products, the lead time is 7–15 working days.

Do you accept the third party inspection?



Absolutely. We support third-party inspection from SGS, BV, TUV and other authoritative institutions before shipment.

How could you guarantee your products?



Strict raw material incoming inspection + production process QC + final pre-delivery test. We provide official test certificates for every batch of goods.

How can I get your quotation as soon as possible?



Please send us your detailed requirements including material type, size, quantity and destination port. We will offer the best quote within 24 hours.
